Review: Warbases MDF Vehicles

Warbases started doing vehicles in lasercut MDF and cardboard (greyboard) a few years ago and I was intrigued right away; a lot of 28mm vehicles are fairly expensive or (especially for World War One, Russian Civil War, or other early 20th C gaming) simply don’t exist.

It took me a while to get around to ordering any of the vehicles, but I now have a Pierce Arrow truck and an Albion truck that I’ve built, and I’m pleased to say these are really nice kits, great value for their cost, and quite easy to build!

The Peasant Cart

I also picked up Warbases’ Peasant Cart 2, which is part of their Carts & Wagons line, listed separately from the Vehicles line. This is a straightforward little model, about 20 pieces including the wheels, and produces a nice solid piece of wargaming scenery. It’s called a cart, but it is a full four wheel wagon.

Assembly and painting didn’t take much time at all, maybe half an hour. I used a random grubby wash of green-grey over the whole wagon, added a bit of pale grey for the insides of the wagon, then did a bit of edge highlighting with a grey-white mix just to pop some of the edges a bit. I’ll probably glue some straw (cut from manila cord) down to the inside of the wagon just for a bit more easy detailing.

Assembled and painted wagon, resting on top of a paint jar. Click for larger.

The wagon is big enough that two or three figures on 20mm bases could fit in the bed of it, although it’s too narrow for 25mm or larger bases to fit flat.

The Trucks

The Pierce Arrow is a relatively small truck, with room for two or three figures in the truck bed. The Albion is quite a bit larger, with room for 6 figures on 20mm bases or 3-4 figures on 25mm bases in the bed.

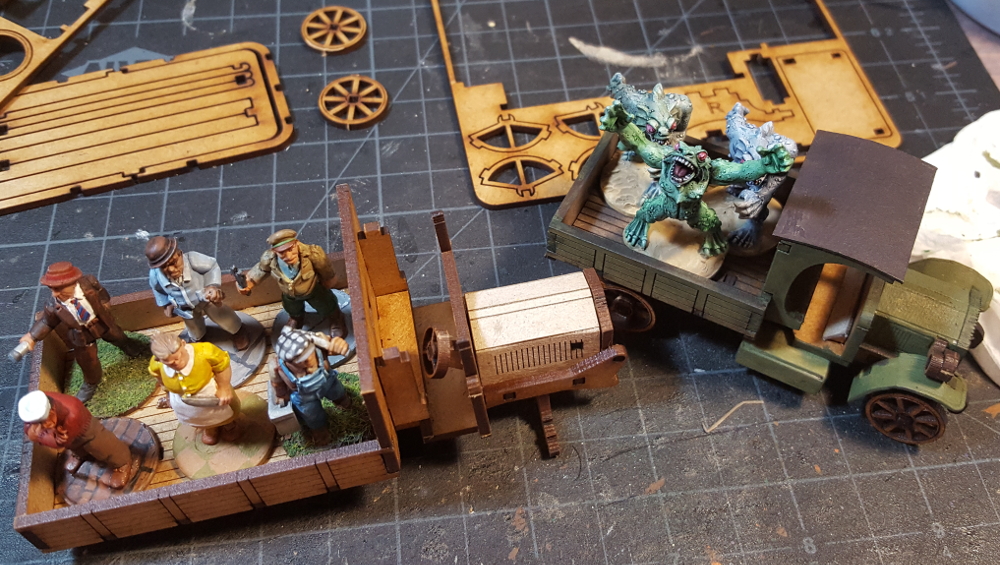

Albion truck under construction in the foreground, Pierce Arrow in the background. The figure is a 28mm Pulp Figures mechanic on a 20mm base. Click for larger.

Each truck comes as a couple of small sheets of MDF and an even smaller (business-card sized, roughly) sheet of greyboard card, with roughly 30 or so parts per vehicle. The instructions are photo-illustrated PDFs on the Warbases website, which does mean you can check them out before purchase. It sometimes takes a bit of peering at some of the photos to figure out which part is being fitted where, and as always I highly, highly recommend carefully dryfitting everything before you start adding glue!

One thing I noticed and appreciated about both trucks and the wagon is that any part that isn’t unique is actually identical to any corresponding part – the sides of the truck beds are identical and interchangeable, for example. Most parts aren’t labelled or numbered, but this nice design touch makes it hard to screw up the build process. Warbases has also put on-sprue/on-sheet photos of the parts of all three of these kits on their website, which helps sometimes with keeping track of parts.

The Pierce Arrow truck took me maybe an hour to assemble and paint to the point you can see in these photos; it’s got a bit of detail painting and cleanup left to do, and maybe some more weathering, so these are fast kits to assemble and get onto the table. I stopped assembling the Albion at the point you see in these photos so that I could paint the undercarriage before adding the wheels and fenders, as the Pierce got a bit cramped to paint with the wheels in place and the Albion has fenders on all four wheels, not just the front. I’ve also skipped putting the cab roof on the Albion for now to make painting the inside of the cab less painful.

Top view of both trucks with figures on 20mm bases in both. Six fit easily in the Albion (left) while three only just fit in the Pierce Arrow (right) with the third one overlapping. Figures all by Bob Murch/Pulp Figures. Click for larger.

The Pierce Arrow has been basecoated dark green with a black roof; I’ll do a round of highlighting (mostly of the edges) and there’s some detail areas like the wheels, headlight, and front grille left to paint. I haven’t decided what colour to do the bigger Albion; possibly dark grey or tan. Both colour schemes will do for either military or civilian vehicles of the era, especially in the chaos of the Russian Civil War!

The fenders, incidentally, are the only really fiddly bit of these kits. They’re lasercut card (greyboard) that you have to bend gently and then glue to an MDF inside piece to get them to hold the needed curve. Neither fender on the Pierce Arrow is quite right, although both are acceptable given the battering such fenders would take on the real vehicles! The instructions from Warbases say to bend the fenders over a pen or the handle of an Xacto, but doing this caused the greyboard to crease for me. I had better luck gently pressing the pieces against the pad of my thumb with another finger and gently flexing the card into a sort of curve that way.

That quibble aside, these are great kits and I’m sure I’ll get more eventually. They’re very sturdy once assembled, well designed for easy assembly, and it’s nice to have such an inexpensive source of vehicles for Early 20th C gaming!

Warbases Church In Progress

Not much activity on the wargaming front in the last couple weeks, for a variety of mostly-irritating reasons, but I have made a bit of progress on the Warbases church I first mentioned in a post a few weeks back.

This is a nicely proportioned building, not so big as to dominate the table, and it’s of a basic design that can literally be found all over the world, anywhere Europeans (especially the Brits) hung out long enough to build churches. You could assemble the basic church in just a few minutes, paint it up quickly, and have a solid and respectable piece of wargaming terrain to use for years. Inspired by the really nicely upgraded example shown on the Warbases website, though, I’ve decided to do some extra detailing and really make this building pop.

I started by assembling the tower, then glued it and the floor to a piece of matt board roughly 11″ long by 7″ wide. I used light card to put flagstones on the floor, with another piece of mattboard at one end of the floor to raise the altar just a bit. The altar itself is more bits of matt board assembled into a rectangle about 1″ wide and half an inch deep. The altar got a coat of GW Liquid Greenstuff for texture, then painted grey with various washes, and a quick edge highlight of much lighter grey.

Warbases church assembled, roof on the right. 28mm Warlord pikeman for scale on a 25mm wide base. Click for larger.

The floor was primed black, then heavily drybrushed with a couple of shades of brown, red oxide, and burnt umber craft paints to get a good reddish stone colour. Most of the church is going to be that colour, with grey stone trim, as a change from the default grey stone!

The entry way on the side of the church has similar flagstone laid down and will eventually be painted the same as the inside floor.

It’s kind of hard to see on the photo above but at the top of the tower I’ve added wood plank flooring from sheet styrene, a trap door in one corner (more sheet styrene), and added matt board to the inside surfaces of the crenelated tops of the walls to double the thickness and make it look more like stonework.

Tower end of the church with the roof properly in place. Click for larger.

The roof got covered in Warbases slate tiles, sold in sheets lasercut from heavy paper (light card? Hard to say, really) with an interesting texture to it. Certainly easier than cutting my own tiles, I got the entire roof covered in just over half an hour of work!

Next up will be adding stone piers to the corners of the building from pink styrofoam, and adding some other stonework detailing with either styrofoam or greenstuff putty.

Stone Outbuilding Finished

Glued down the towel thatching, slapped a coat of paint over the small stone building, added the door, and declared it done!

The towel got cut into a rough rectangle, big enough to hang an inch or so over the edges of the cardboard roof on all sides. I used a hot glue gun to glue the towel over the cardboard roof, including wrapping it around the edges and underside of the sides of the roof. This gave the roof the nice thick edge you see on a lot of thatch roofs. To fit the roof around the curve at the rear of the building I cut up to the peak of the curved part and layered the towel over itself further down, trimming a bit away so the overlap wasn’t too large.

Adding black paint and glue to the roof. Click for larger.

The first layer of painting was actually a mix of paint and white glue, generously applied with a fairly large brush, with a bit of water to help move the paint around. Towel soaks liquid up like, well, towel, so expect to use more paint and more glue than you first thing you’ll need! After this mix has dried overnight it’s really solid and gamer-proof. One of the reasons I usually use a tan or off-white towel for thatch, even though I always paint over it, is that any bits of towel that don’t get painted still look reasonable, which wouldn’t be the case if I used a colourful towel &mdhas; thatch ain’t usually blue or red…

Basecoat on the thatch, with the farmhouse in the background and a 28mm Warlord pikeman for scale. Click for larger.

After the black paint has dried overnight I drybrushed various shades of brown and tan over the thatch, ending with a fairly bright yellow-tan colour mixed with a bit of white, applied mostly along the ridgeline and edges of the roof, just to make them pop a little. As with the base coat, don’t bother using a small brush for this, I used a 3/4″ wide cheap house painting brush for all of this work!

The stonework had also been based black. I put a few blotches of green and brown down here and there, and then drybrushed a dark grey, a pale grey, and finally a mix of pale grey and white over the stones.

I didn’t get a photo of the door, but it was done on a rectangle of light card with narrow pieces of scrap wood from coffee stir sticks, glued down with hot glue, then hit with a heavy dark wash (mostly GW Nuln Oil) so it looked like heavily weathered wood.

Painting all done, just the door left to install. Click for larger.

Stonework from styrofoam is a lot of fun and fast to do; I might do a few more stone cottages or something eventually. Maybe a ruined abbey or something suitable for pulp/English Civil War crossover gaming? We shall see!

Links of Interest, 16 May 2017

A semi-random collection of links that have caught my eye recently!

Swamp grass from cheap paintbrushes via Rob Hawkin’s awesome blog. Hmm, I just picked up a 5-pack of Home Depot paintbrushes that look exactly like the one he uses in his tutorial, and I’m planning some stream/swamp sections! Lots of other good stuff on Mr. Hawkin’s blog, it’s well worth rummaging through his archive.

The crowded English Civil War – Royalist & Parliamentary garrisons in a 14 mile by 14 mile area of the West Midlands! I looked a few of these locations up on Google Maps – it’s mostly the suburban/semi-urban sprawl and absorbed villages on the edges of Birmingham these days. One thing that fascinates me about the ECW is just how damn small the UK is. A lot of the historical counties are 50-75 km each way or less, and for the small skirmishing squabbles of the ECW competing garrisons only a few miles apart wouldn’t be uncommon.

Tiny Furniture is a fairly new company with some neat science fiction furniture and detailing bits for your tabletop terrain projects. They’re running a Kickstarter as I write this for some retro-apocalypse (Fallout-style) furniture that looks pretty cool.

Finally, some rather cool space travel posters in a deco style for anyone like me who enjoys that style.

Stone Outbuilding/Hovel

With the farmhouse and dovecote progressing well, I wanted to move on to a few smaller buildings to the mix.

This little stone outbuilding is the first of those. It’s a few random scrap pieces of pink insulation styrofoam, hot glue, and a chunk of corrugated cardboard so far. Footprint is about 2″ wide by 3″ long, and it’s about 2.5″ tall or so.

Stone outbuilding from scrap styrofoam insulation. The roof will get towel over it for thatch. Click for larger.

The four wall pieces were glued together with hot glue and the curve across the back cut after everything was assembled. I didn’t get a photo before I put the cardboard roof on, but there’s another couple of bits of scrap styrofoam under it to reinforce the roof.

Underside of the stone outbuilding. Four bits of styrofoam for the walls, with the curve of the back wall cut freehand after everything was assembled. Click for larger.

The gap in the front wall will get a door from scrap cardstock after the stonework is all painted up.

This one might be finished tonight, if I get time to glue the towel thatch down and slap a bit of paint around. It’s nice to have some quick little projects sometimes!

Half-Timber ECW Buildings, 11 May

I’ve been painting the dovecote and farmhouse together, so rather than separate updates I’ll just do combined “state of the ECW scenery” update today!

Both buildings have had most of their painting finished, with touchup and work on the bases the main things left to do, along with the roof of the farmhouse.

I’ve also glued the tower section of the Warbases church down to the base, which had already had the floor glued down and cardstock flagstones added earlier. I haven’t posted about the church yet, I’ll do a separate post soon about it, but it’s a nice basic MDF kit that I’m planning on dressing up considerably!

Farmhouse on the left, dovecote centre, and Warbases church on the right and in the foreground. Click for larger.

I’m not entirely happy with the roof and cupola/tower of the dovecote, so might go back and add some more details there, and I think it needs at least one more round of paint to really get the slate tiles (from thin card) looking really good. I’m really pleased with how the rest of both buildings have come together, though, espcially now that they’re painted.

Both buildings got a black undercoat across everything, then the woodwork got a heavy drybrush of very dark brown (brown + black paint mixed), then a lighter drybrush of brown, and finally a very light drybrush of tan mostly on the corners and edges of the bigger beams. The plaster areas between the timber got a brown coat, very thinned, then tan paint, also very thinned, then a final coat of white with a bit of the tan paint mixed in, also very thin. The final colour is a great blotchy not-quite-white that varies between panels.

The chimney and end wall of the half-timber farmhouse. Click for larger.

I am really pleased with how the big chimney up the end wall of the farmhouse has turned out. It’s a mix of stone, brick, and plastered areas (some broken with brick showing through) and came out looking great. Paint on the brick is brown base, red oxide, then washes of GW Nuln Oil and Seraphim Sepia, and finally a light drybrush with red oxide and tan. The plaster areas got the same paint mix as the walls.

More soon; I’ll be building a couple of small cottages, hovels, and outbuildings to finish off a bit of a rural hamlet or farm for English Civil War gaming or pulp games set in the English countryside.

Half-Timber Farmhouse, Part One

After getting the dovecote constructed (although not yet painted) I decided the next building would be a bit more substantial, and that a farmhouse would be the obvious counterpart to the dovecote.

It’s not quite a manor house, except maybe in some rather backwoods shire, but it’s a substantial two storey building with a big chimney rambling up one end. The main structure is all 1/16th matt board, the stonework is pink styrofoam insulation, and the timbering is thin wooden coffee stir sticks, mostly split lengthwise into thinner pieces.

The dimensions, roughly, are 5″ long, 3″ wide, and about 5″ tall to the top of the chimney, which is about where the roof peak will fall too once that’s done. The walls are 40mm high; the total base is about 7″ long and 5″ wide or so.

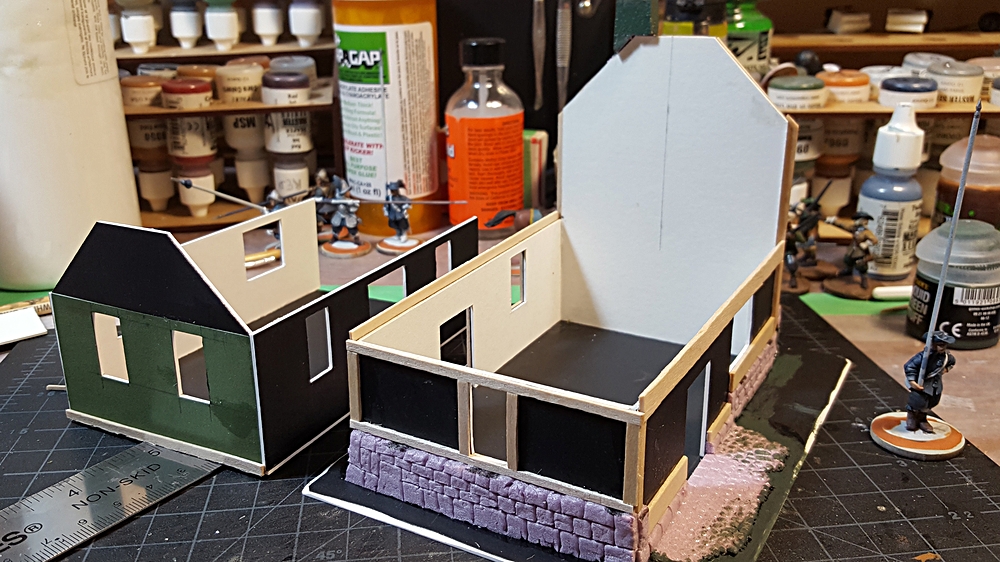

The earliest construction photo I remembered to take. Walls all up, foam stonework in progress, started the half-timbering on the back wall and one long wall. Second floor off to the left. Click for larger.

The other end, early in construction. Stonework in place and half-timbering just begun on the first floor. Click for larger.

For the cobblestone patches outside each door and the bricks up the chimney, I used two different old paintbrushes that I yanked the worn-out bristles from and then re-shaped the metal ferrule with a pair of needle nose pliers and a small file. The smallest brush became the brick press tool, and a slightly larger round one became the cobblestone tool. There’s also a larger rectangular one that doesn’t appear on this project but will at some point in the near future. I’ll get a photo of the press tools for a future post, they’re a great easy way to do bricks, cobbles, and other semi-regular or regular masonry patterns.

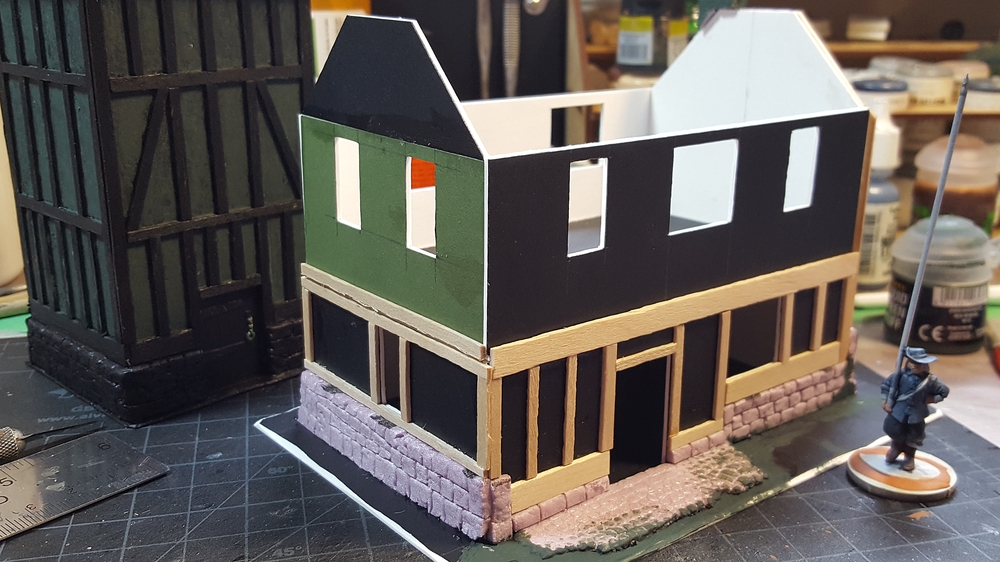

Upper floor in place; it’s basically a three-sided tray held in place by the horizontal half-timbering along the sides. Click for larger.

The second floor is three-sided to make building the big chimney down the back wall easier, rather than splitting the chimney into two or three pieces. The second floor is held in place by the half-timbering horizontal beams along the two long sides of the house, and the beams overlap at the back corners so the join between the floors and walls is nearly invisible when the house is all assembled.

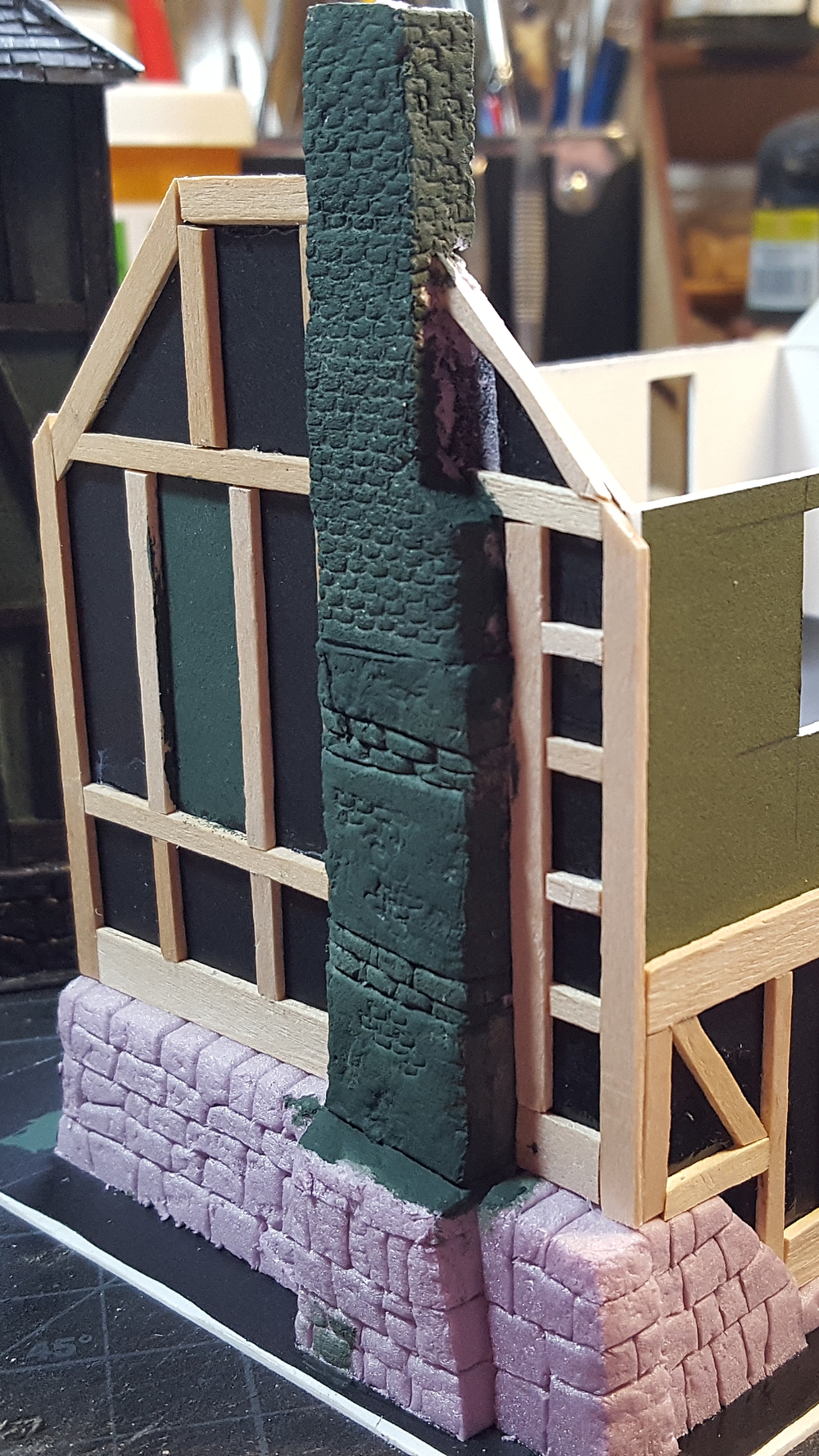

Close up of the end wall, with brick patterning all done on the chimney. The pink foam has been coated in GW Liquid Greenstuff for strength and texture. Click for larger.

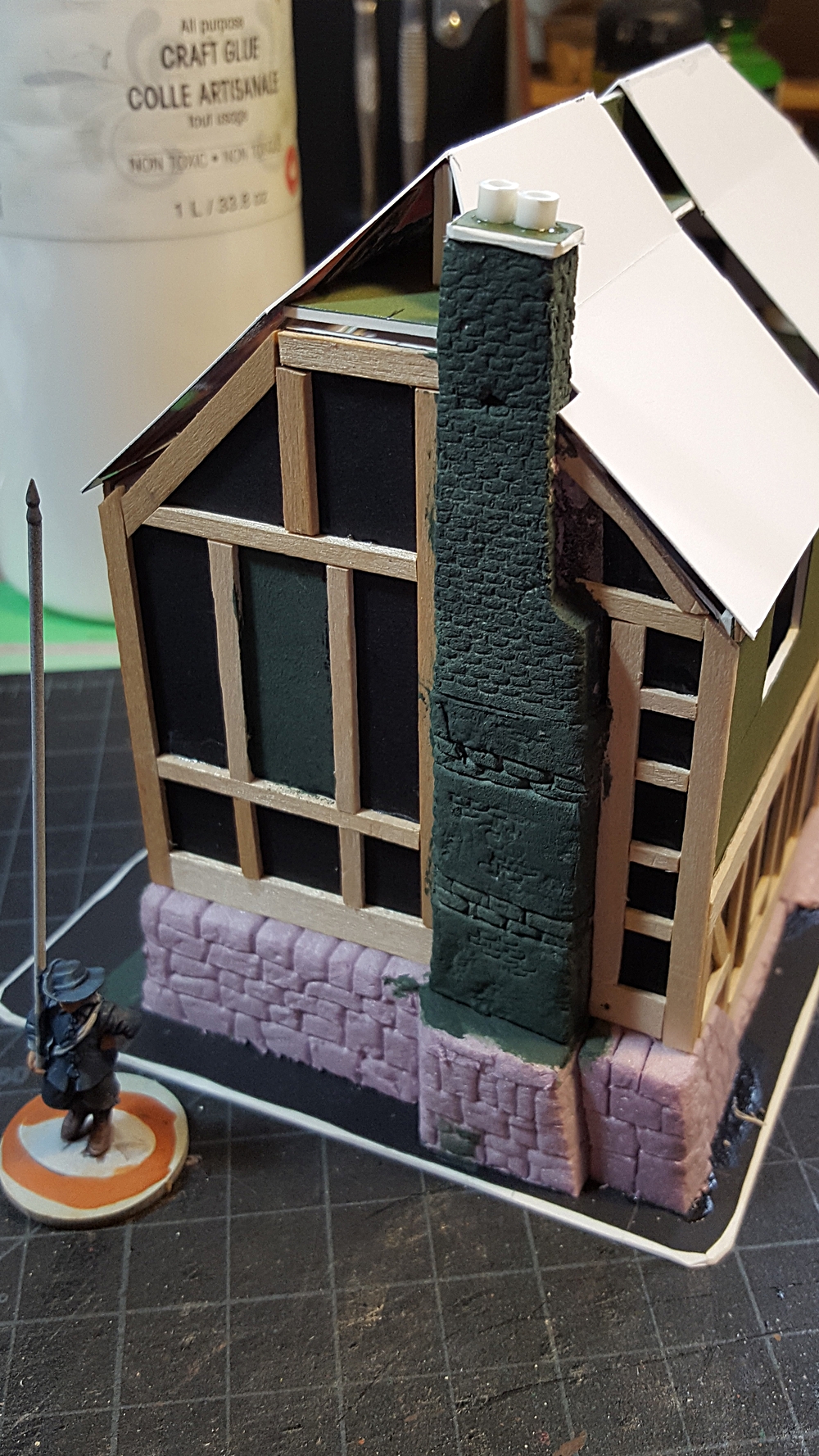

Wider view of the chimney end of the farmhouse, with 28mm Warlord pikeman on a 25mm base for scale. Click for larger.

The top cap of the chimney is a scrap of matt board and two little segments of styrene tube, all coated in more GW Liquid Greenstuff for texture.

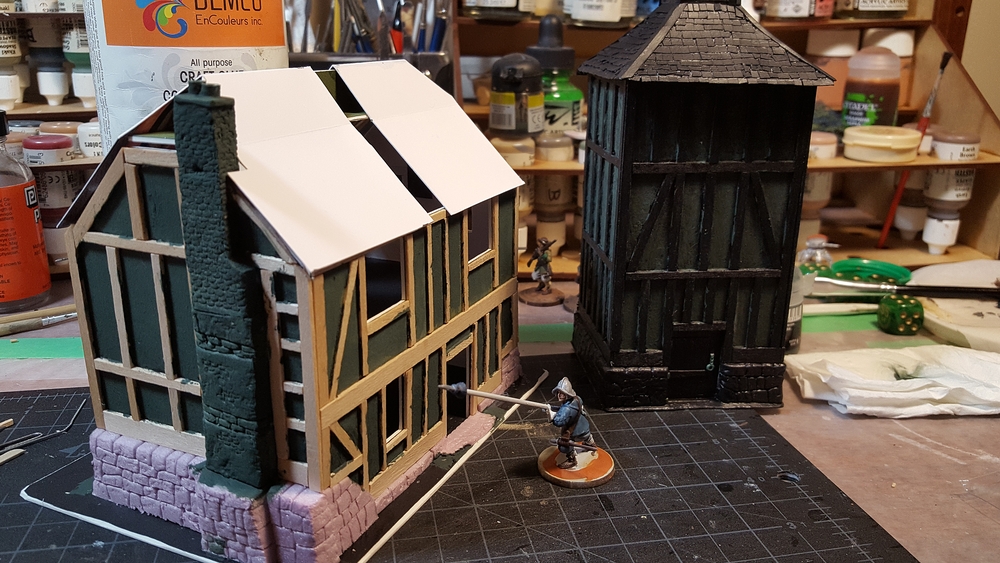

Timbering all complete and roof structure started. Click for larger.

The roof will be thatch, once I get around to picking up another cheap handtowel to chop up for thatching. The understructure is a mix of 1/16th matt board and lighter card, and will all be buried under towel in due course.

In the background of the last photo you can see the current state of the dovecote, all black primered with yet more GW Liquid Greenstuff to add texture to the wattle & daub panels between the timbering.

I’ll probably paint both buildings together, now that they’re both at the primered stage. More on that soon!

Half-Timber Dovecote, Part Two

When we last saw the dovecote, the halftimber detailing on the walls was done, the roof was just started, and it lacked paint.

Here’s the current state of the beast!

Waiting for paint! Click for larger, as usual.

The roof got cardboard tiles to look like slate on both the main roof and the top of the tower. The capping along the ridges on the main roof is strips of light card, while for the tower roof I used greenstuff putty for the ridge caps and the little finial decoration right at the peak.

I also used a bit of greenstuff to add a ring handle to the door, and some details to the hinges.

The whole thing has been primed black, and then the wall panels between the timbers got a coat of GW Liquid Greenstuff to add some extra texture to those areas.

I’ve also started work on a large farmhouse, two stories with a thatch roof planned for it. More photos of that soon, it’s coming along nicely and I suspect I’ll paint both buildings at the same time.

I’ve had people ask about plans for these buildings. I rarely make formal plans for buildings in a way that would be useful to other people, to be honest! For the dovecote I started with the article in WS&S #87 and tweaked things slightly; the farmhouse is entirely out of my head, starting with a basic idea of how large I wanted the building to be (about 5″ by 3″, as it happens) and the basic features I wanted. I have spent some time looking at photos and sketches of the real thing; the post I wrote a few years ago on half-timber architecture in the Internet Archive is still useful, as is Google Image Search for terms like “17th Century English farmhouse” and similar. A lot of buildings like this, especially rural or village buildings, could be pretty wonky and random, so it’s kind of hard to get things wrong! If in doubt, just chuck a coat of plaster over it, like real builders have been known to do!
